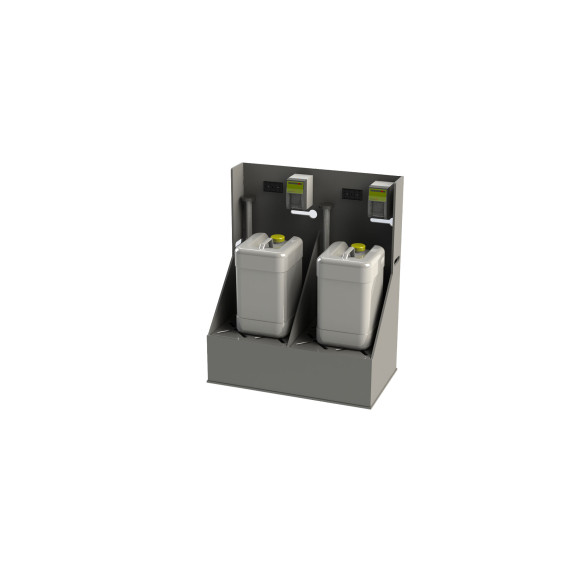

Dosing cabinet for installing descon hose dosing pumps and accessories. Cabinet made of PVC sheet material featuring an integrated drip tray, suction lance holder, and hose/cable feed-through.
Dimensions (WxDxH): 830 x 480 x 1,005 mm
Operating temperature: 5 – 50°C
Weight: approx. 36 kg

Chemical dosing enclosure designed to house standard peristaltic dosing pumps for the continuous dosing of liquid chemicals directly from supply containers.Prepared for the installation of one or two standard peristaltic dosing pumps (descon brand) with accessories. Two different dosing agents can be used—for example, for pH adjustment and flocculation.

Resistance:
Alkalis, medium-concentration acids, alkaline washing and bleaching solutions, oxidizing acids and substances,
Sodium hypochlorite (NaClO) up to 15%,
Hydrochloric acid (HCl) up to 20%,
Sulfuric acid (H2SO4) up to 30%,
Polyaluminium chloride (PAC),
Organic chlorine products up to 10%,
Sodium hydroxide (NaOH)

Scope of delivery:
Dosing enclosure made of PVC sheet material with an integrated drip tray.

Dosing pumps and accessories must be ordered separately according to your requirements; they are not included in the scope of delivery.
